Z301

Z301 Standard Resin Ribbon is uniquely engineered for flat head applications requiring high levels of abrasion, heat and solvent resistance. Z301 provides outstanding print quality onto a wide variety of synthetic and polyester labels and tag materials .Our proprietary anti-static back coating formulation dissipates static electricity and works to protect and extend the life of the valuable print head.
Message
Contact Us

Product Details

Technical specifications

Base film：BOPET

Total ribbon thickness (μm)：6.7±0.5

Storage conditions：-5°C~40°C，20%~85% Relative Humidity

Base film thickness (um)：4.5±0.2

Ink melting point：98°C

Shelf life：1year



Printing characteristics

ink color：Black

Color density：≥1.5 (test on X-Rite tester)

Abrasion resistance：≥70 times (500g weight, test on CS-10 rub tester)

Alcohol resistance：≥50 times (500g weight, 95% ethyl alcohol, test on PET labels)



Application scenario

Chemical、manufacturing、Tire identification、Car manufacturing

Electronic、Processing、Medical packaging、Cosmetic label、Outdoor signs

Solar photovoitaics、Steel industry、New Lithium Battery

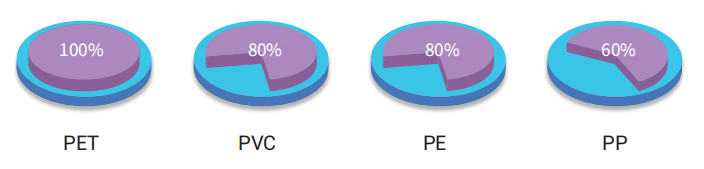

Recommended substrates

PET100%

PVC80%

PE80%

PP60%

Coated Papers40%

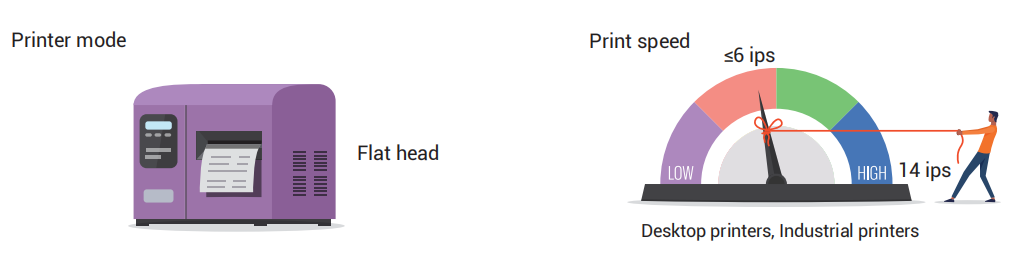

Recommended printing conditions

Printer mode：Flat head

Print speed：≤6 ips
