Z110
Classification:
Product Introduction
Product Details

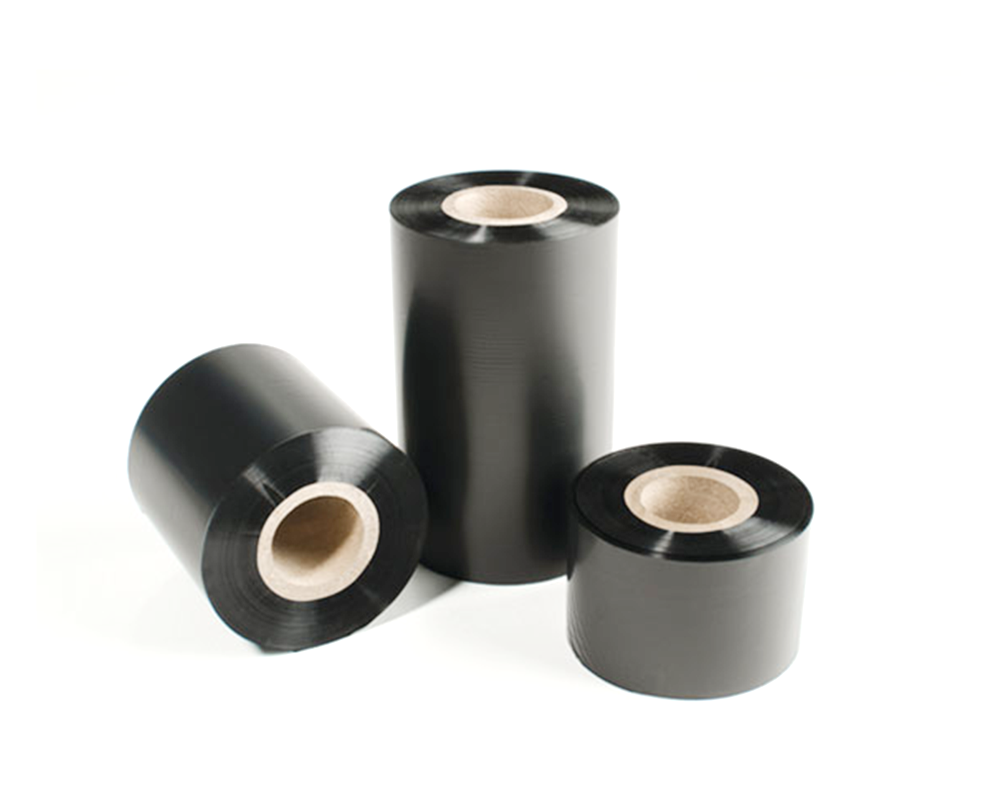

Standard reinforced wax-based ribbons with high print fineness, black marks and excellent abrasion resistance.
Basic information of the ribbon
Base material: polyester film
Base film thickness (μm): 4.5±0.2
Total thickness (μm): 7.1±0.5
Substrate ink point: 85°C
Shelf life: one year
Storage conditions: Temperature -5℃~40℃, humidity 20%~85%, ventilation, avoiding light, away from heat sources.
Printing characteristics:
Ink layer colour: black
Colour density: 2.0 (standard version of spectrodensitometer X- rite exact)
Printing effect: 0.1mm fine line complete and clear, 4pt Chinese and English clear reading.
Friction resistance: 100 times (A4 paper 500 g weight)
Low temperature test: no change in label printing (20 hours in -17℃ closed cold box).

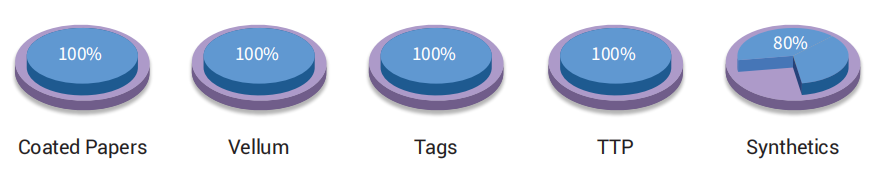

Material Adaptability
Colour coated paper 80%, synthetic paper 80%.
Application Scenarios
Price labels, logistics labels, retail merchandise, packaging labels, storage labels, garment tags.

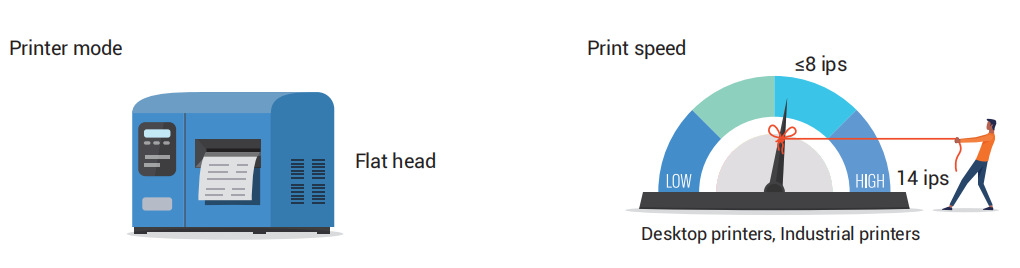

Recommended conditions of use
Printing method: Flatbed printer
Printing speed (IPS) : ≤ 6
