SCF908


Classification:

Product Introduction

Suitable for food, pharmaceuticals and food industry products that have high requirements for high temperature sterilisation, and at the same time do not need to be frozen or refrigerated for a long time for coding, and can be used for PET, milk bags, aluminium foil and various composite film printing.

Product Details


High Temperature Printing Ribbon, Lettering Resistant to High Temperature Sterilisation

Ribbon basic information

Ribbon material: Base material: polyester film

Base film thickness (μm): 12 ± 0.2

Total thickness (μm): 23 ± 1.0

Shelf life: one year

Storage conditions: temperature -5 ℃ ~ 40 ℃, humidity 20% ~ 85%, ventilation, light, away from heat sources.

Print image characteristics

Ink layer colour: black.

Printing effect: 2mm * 4mm grain printing, fine and regular handwriting.

Friction resistance: ≥100 times (load 20N, test material: aluminised film).

High temperature resistance: 100 ℃ (boiling water treatment for 10 minutes, removed to measure the friction resistance pass)

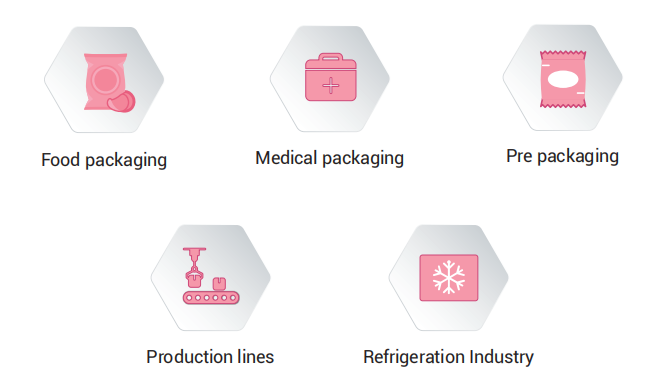

Application Scenario

Suitable for food, pharmaceuticals and food industry products that have high requirements for high temperature sterilisation, and at the same time do not need to be frozen or refrigerated for a long time for coding, and can be used for PET, milk bags, aluminium foil and various composite film printing.

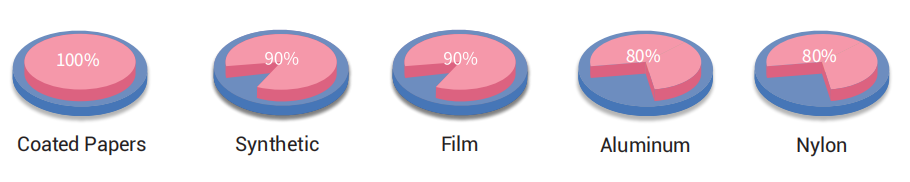

Material adaptability

PET 100%, PVDC 100%, PE 100%, PP 100%, PA 80%, aluminised film 80%.

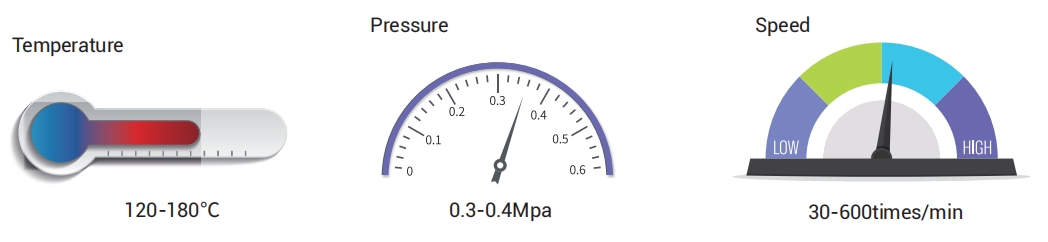

Recommended conditions of use

Printing temperature (℃): 150-180

Printing pressure (Mpa): 0.3-0.4

Printing speed(times/minute): 30-600
