T074
T074 is a high-performance near-edge wax/resin ribbon developed for in-line printing of variable data — including date codes, pricing, lot numbers, and barcodes — directly onto flexible packaging. Engineered for performance at speeds up to 40 inches per second, it features a thiner film construction that enables longer ribbon lengths and minimizes production downtime. T074 delivers rich print density, with excellent resistance to smudging and abrasion, and ensures reliable transfer on a wide range of packaging films. Its low-energy activation profile supports extended printhead life and consistent output in demanding, high-throughput
environments.
Product Details

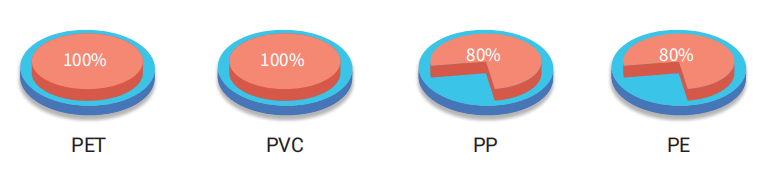

Recommended substrates
Printing characteristics
| Ink color | Black |
| Color density |
≥1.4 (test on X-Rite tester)
|
|
Abrasion resistance
|
≥40 times (200g weight, test on Coated tester)
|

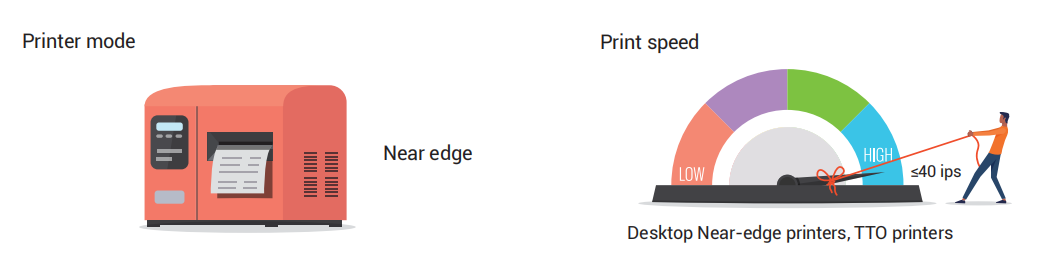

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.
Technical specifications
|
Base film |
BOPET |
| Total ribbon thickness (μm) |
6.0±0.2
|
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) |
4.0±0.2
|
| Ink melting point |
75℃ |
| Shelf life |
1 year |
Certificates and reports
Application scenario
Key words:
Thermal Transfer Ribbon
