Z316
Z316 is a resin specifically developed for thermal transfer overprinting (TTO) platforms, engineered to deliver consistent, high-speed performance with excellent resistance to heat and abrasion. Its ultra-thin base film allows for smooth image transfer at low energy settings, helping maximize print efficiency and extend ribbon roll capacity. Designed for use on flexible packaging materials, Z316 ensures sharp, long-lasting prints — making it a reliable choice for fast-moving production lines that demand both precision and durability.
Product Details

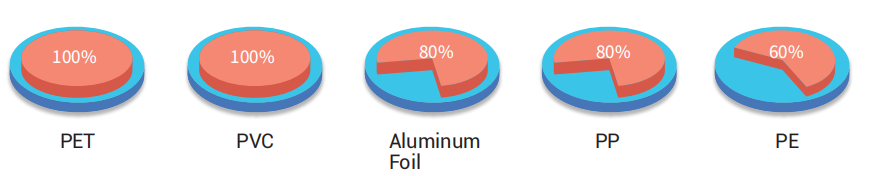

Recommended substrates
Printing characteristics
| Ink color | Black |
| Color density |
≥1.3 (test on X-Rite tester
|
|
Abrasion resistance
|
≥100 times (500g weight, test on CS-10 rub tester)
|
|
Alcohol resistance
|
>20 times (500g weight, 95% ethyl alcohol, test on PET labels) |

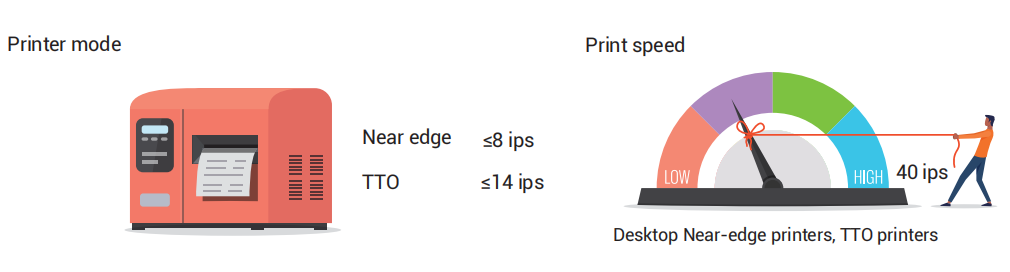

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.

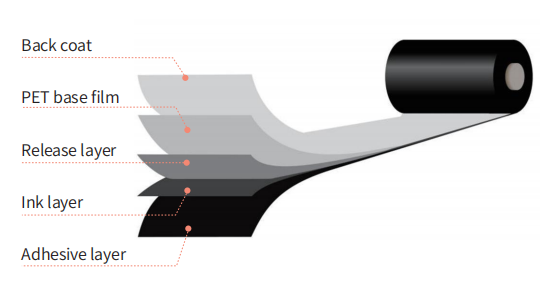

Technical specifications
|
Base film |
BOPET |
| Total ribbon thickness (μm) |
5.5±0.5
|
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) |
4.0±0.3
|
| Ink melting point |
90℃ |
| Shelf life |
1 year |
Certificates and reports
Application scenario
