Z-Series
Z-Series brings vibrant, consistent color printing to a wide range of labeling applications. Available in wax, wax/resin, and resin formulations, these ribbons are engineered for both flat-head and near-edge printers, providing excellent compatibility with coated papers, synthetic labels, and flexible films.
The wax-based color ribbons (Blue Z101B, Green Z101G, Red Z101R) compatible with both flat head and near edge platform, offer crisp, vivid output and are ideal for general-purpose printing; The wax/resincolors (Blue T080, Green T082, Red T081, Silver T004, White T079) delivers improved durability and is optimized for high-speed near-edge systems, and the white Z500W is a dedicated one serves flat head platform; The resin-based colors (Blue T016B, Green T016G, Grey Z600H, Red Z600R, White Z602W) are designed for demanding environments, offering superior resistance for harsh environments.
The wax-based color ribbons (Blue Z101B, Green Z101G, Red Z101R) compatible with both flat head and near edge platform, offer crisp, vivid output and are ideal for general-purpose printing; The wax/resincolors (Blue T080, Green T082, Red T081, Silver T004, White T079) delivers improved durability and is optimized for high-speed near-edge systems, and the white Z500W is a dedicated one serves flat head platform; The resin-based colors (Blue T016B, Green T016G, Grey Z600H, Red Z600R, White Z602W) are designed for demanding environments, offering superior resistance for harsh environments.
Product Details

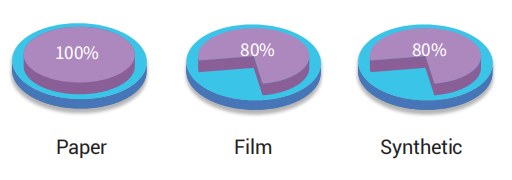

Recommended substrates
Printing characteristics
| Ink color | Blue, Green, Grey, Red, Silver, White, Yellow |
| Color density | ≥1.5 (test on X-Rite tester) |
| Abrasion resistance | ≥80 times (500g weight, test on CS-10 rub tester) |
| Alcohol resistance | ≥90 times (500g weight, 95% ethyl alcohol, test on PET labels) |

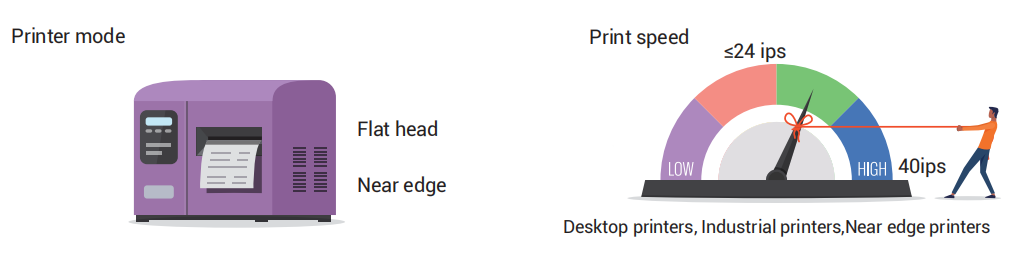

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.
Technical specifications
|
Base film |
BOPET |
| Total ribbon thickness (μm) | 6.7±0.5 |
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) |
4.5±0.5 |
| Ink melting point |
85℃ |
| Shelf life |
1 year |
Certificates and reports
Application scenario
Key words:
Thermal Transfer Ribbon
