Z800
Z800 is a specialized textile resin developed for long-lasting, high-clarity printing on apparel labels. Engineered to withstand repeated washing, ironing, and dry-cleaning cycles, it delivers exceptional durability without compromising image sharpness. Resistant to heat, moisture, and chemical exposure, Z800 performs reliably on a wide range of synthetic fabrics and woven materials, making it the trusted choice for applications where permanence and legibility are non-negotiable.
Product Details

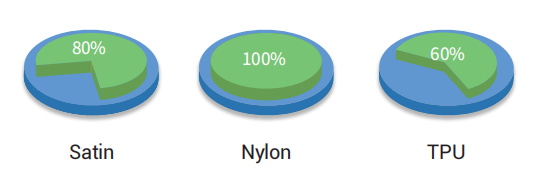

Recommended substrates
Printing characteristics
| Ink color | Black |
| Color density | Before washing ≥1.0 After washing ≥0.5 (test on Satin PS761 by X-Rite tester) Before washing ≥1.1 After washing ≥0.9 (test on Nylon DP661 by X-Rite tester) |
| Washing resistance |
≥Grade 3 (60℃ water for washing 8 hours)
|
|
Ironing resistance
|
150℃
|
Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.

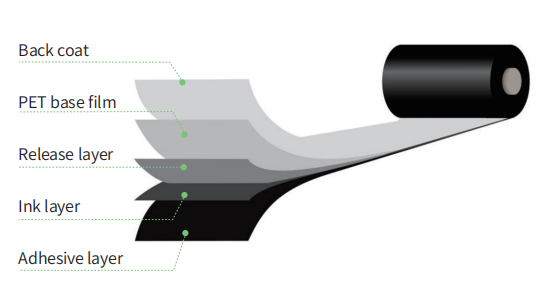

Technical specifications
|
Base film |
BOPET |
| Total ribbon thickness (μm) |
6.3±0.5
|
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) | 4.5±0.2 |
| Ink melting point |
90℃ |
| Shelf life |
1 year |
Certificates and reports
Application scenario
Key words:
Thermal Transfer Ribbon
