Z800PLUS
Z800PLUS Textile Resin Ribbon is a highly durable wash care resin used for garment and textile label printing. It offers excellent print quality and superior resistance to washing, ironing and dry cleaning applications. Highly resistant to heat, water and industrial solvents. Z800PLUS is compatilble with a wide variety of nylon materials, polyester satin, rayon and synthetic fibers.
Product Details

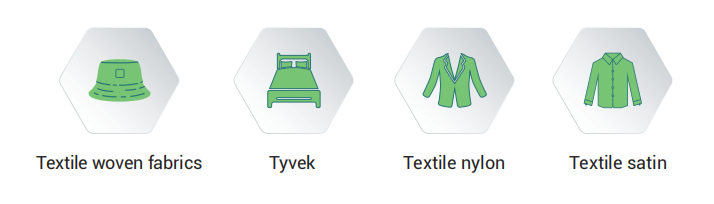

Recommended substrates

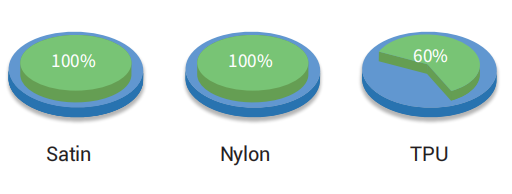

Printing characteristics
| Ink color | Black |
| Color density | Before washing ≥1.2 After washing ≥0.8 (test on Satin PS761 by X-Rite tester) Before washing ≥1.2 After washing ≥1.0 (test on Nylon DP661 by X-Rite tester) |
| Washing resistance |
≥Grade 4 (60℃ water for washing 8 hours)
|
|
Ironing resistance
|
150℃
|

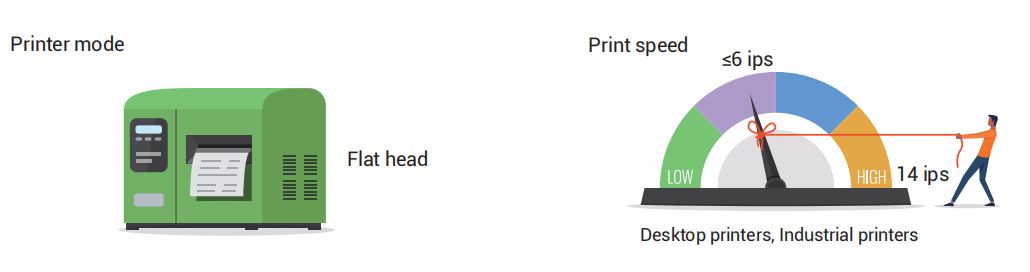

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.
Technical specifications
|
Base film |
BOPET |
| Total ribbon thickness (μm) |
6.3±0.5
|
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) | 4.5±0.2 |
| Ink melting point |
85℃ |
| Shelf life |
1 year |
Certificates and reports
Application scenario
