Z312

Z312 TTO Resin Ribbon is specially designed for TTO applications with high levels of abrasion, heat and solvent resistance. The unique 4.0micron base-film enables Z312 to adapt high print speed and low print energy on TTO printers. Our proprietary anti-static back coating formulation dissipates static electricity and works to protect and extend the life of the valuable print head.

Message

Product Details

Technical specifications

Base film：BOPET

Total ribbon thickness (μm)：5.5±0.5

Storage conditions：-5°C~40°C，20%~85% Relative Humidity

Base film thickness (μm)：4.0±0.2

Ink melting point：90°C

Shelf life：1year

Printing characteristics

ink color：Black

Color density：≥1.3 (test on X-Rite tester)

Abrasion resistance：≥100times (500g weight, test on CS-10 rub tester)

Alcohol resistance：≥20 times (500g weight, 95% ethyl alcohol, test on PET labels)

Application scenario

Hot working、Retail labels、Refrigeration Industry、Medical packaging

Pre packaging、Food packaging

Recommended substrates

PET100%

PVC100%

Aluminum Plastics80%

PP80%

Coated Papers60%

PE60%

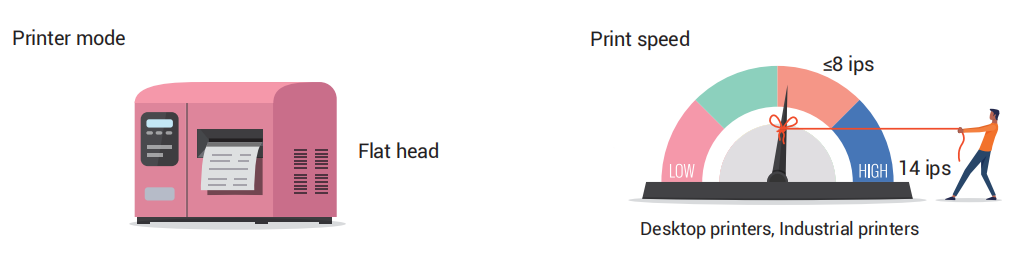

Recommended printing conditions

Near edge≤8 ips

TTO≤13 ips
